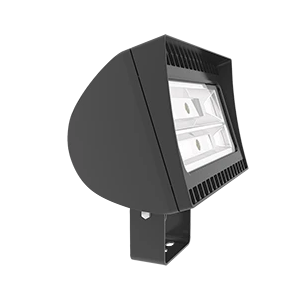

RAB Lighting FXLED78T FLEX FLOOD 78W W/ TRUNNION BRACKET

UL Listed

Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

IESNA LM-79 & IESNA LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.66A, 208V: 0.38A, 240V: 0.33A, 277V: 0.29A

THD

6.12% at 120V, 7.79% at 277V

Power Factor

99.8% at 120V, 94.9% at 277V

Note

All values are typical (tolerance +/- 10%)

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

IP Rating

Ingress Protection rating of IP66 for dust and water

EPA

2

Ambient Temperature

Suitable for use in up to -40°C (-40°F) to 40°C (104°F)

Lens

Tempered glass lens included

Housing

Die-cast aluminum housing and door frame

Mounting

Heavy-duty Trunnion mount with stainless steel hardware

Finish

Formulated for high durability and long-lasting color

Equivalency

Equivalent to 250W Metal Halide
