AlumiConn Wire Connectors
Aluminum-to-copper connectors from King Innovation

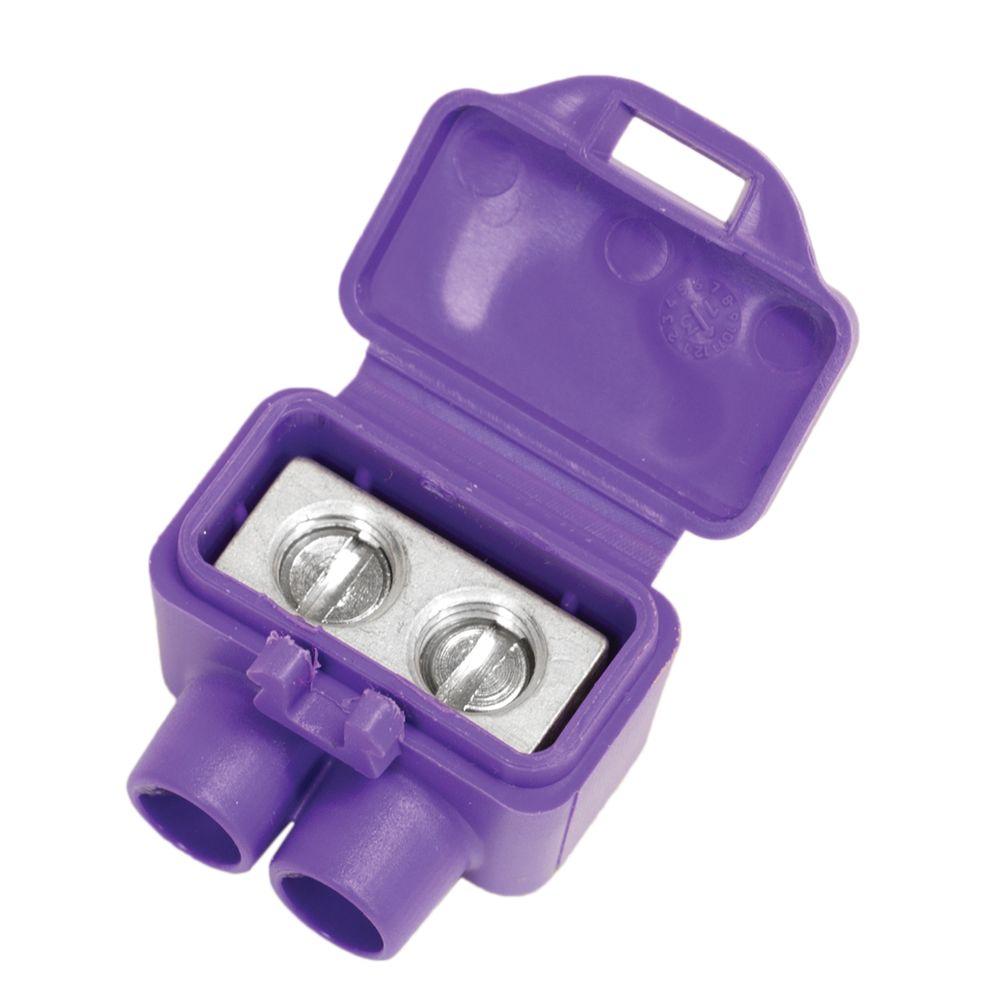

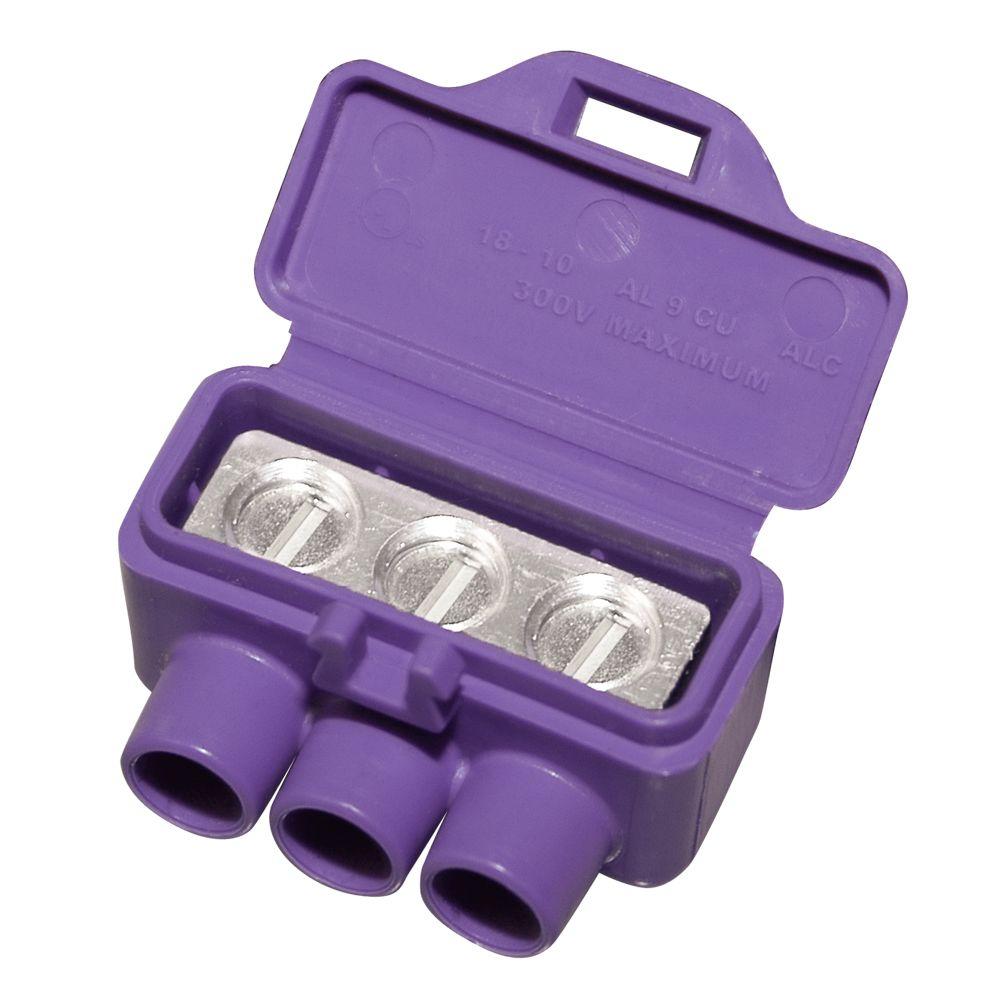

Choose an AlumiConn lug for compatible aluminum-to-copper, aluminum-to-aluminum or copper-to-copper connections. Each conductor occupies a separate port secured by a set screw. Compare the 2-port and 3-port connectors below by conductor count and pack quantity.
Choose the port count and pack size
Select the port count for the complete connection, using only one conductor per port. Pack quantity is the number of connectors supplied, not the number of conductors a connector accepts.
| Pack quantity | 2-port model | 3-port model |
|---|---|---|
| 2 | Not listed | 95104 |
| 10 | 95015 | 95110 |
| 25 | 95025 | 95125 |
| 100 | 95035 | 95135 |
| 1000 | 95045 | 95145 |
| 2500 | 95085 | 95185 |
Manufacturer specifications
- Maximum voltage: 300V
- Aluminum conductors: #12–#10 AWG solid
- Copper conductors: #18–#10 AWG solid or stranded
- Temperature rating: 105°C
- Tin-plated lug with nickel-plated screws
Installation and application guidance
Have a qualified electrician assess the wiring and select the connector for the application. Follow King Innovation's model-specific preparation and torque instructions. Use one conductor per port; do not reuse connectors. Confirm applicable code requirements, enclosure space and the proposed repair with the local authority having jurisdiction (AHJ).
2-port AlumiConn specifications and installation instructions · 3-port AlumiConn specifications and installation instructions
For landscape wiring, browse waterproof wire connectors or landscape lighting wire. Select connectors rated for the intended environment.
