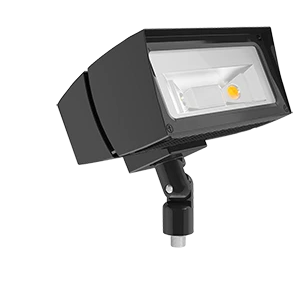

RAB Lighting FFLED52Y 52 WATT FUTURE FLOOD 3000K BRONZE

SPECIFICATIONS

• Ultra-efficient LED and optical design

• Replaces 175W MH floodlights

• 100,000-hour life based on LM-80 results and TM-21 calculations

• "Air-Flow" technology heatsink

• 5-Year, No-Compromise Warrant

• UL Listed

  Suitable for wet locations. Suitable for mounting within 1.2m (4ft) of the ground.

  IESNA LM-79 & LM-80 Testing

  RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

  Electrical

  Driver

  Constant Current, Class 2, 100-277V, 50/60 Hz, 4 kV surge protection, 120V: 0.45A, 208V: 0.27A, 240V: 0.24A, 277V: 0.21A

  Dimming Driver

  Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

  Note

  All values are typical (tolerance +/- 10%)

  Performance

  Lifespan

  100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

  Construction

  IP Rating

  Ingress Protection rating of IP66 for dust and water

  Ambient Temperature

  Suitable for use in up to 40°C (104°F)

  Cold Weather Starting

  Minimum starting temperature is -40°C (-40°F)

  Thermal Management Housing

  Superior heat sinking with external Air-Flow fins

  Housing

  Die-cast aluminum housing, lens frame and mounting arm

  Threaded Size

  1/2" threaded arm

  Mounting

  Heavy-duty mounting arm with "O" ring seal & stainless steel screw

  Effective Projected Area

  EPA = 0.65

  Reflector

  Specular polycarbonate

  Gaskets

  High-temperature silicone gaskets

  Finish

  Formulated for high durability and long-lasting color

  Green Technology

  Mercury and UV free. RoHS-compliant components.

  Optical

  NEMA Type

  NEMA Beam Spread of 7H x 6V

  LED Characteristics

  LEDs

  Two multi-chip, 26Watt high performance LEDs

  Color Consistency

  3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

  Color Stability

  LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

  Color Uniformity

  RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

  Other

  Equivalency

  Replaces 200W Metal Halide

  PERFORMANCE

  Watts	52W
  Color Temp	3000K (Warm)
  Lumens	6743
  Efficacy	120.6 lm/W
  Color Accuracy	70 CRI
  L70 Lifespan	100,000 hours

  Type	Constant Current
  120V	0.45A
  208V	0.27A
  240V	0.24A
  277V	0.21A
  Input Watts	55.9W
