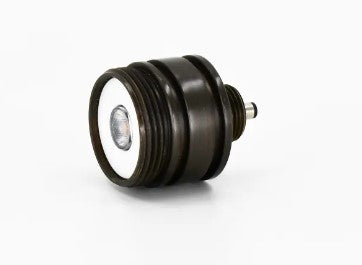

Lumien M7B1-4.5W-40-A Tunable White Micro LED Module

The Lumien M7B1-4.5W-40-A is a brass Micro LED module with a 40° beam and adjustable white light from 2700K to 5700K. Use it in a compatible Lumien brass Micro Drop In or Quick Connect assembly when you want to tune the white-light appearance after installation.

Specifications for this module

Build a complete fixture

This is the light-source module, not a complete path, pendant or spot fixture. Confirm the compatible housing, shroud, mount and wiring components for your assembly. Do not assume that an aluminum Micro housing uses the same module.

Lumien lists a 6-foot Quick Connect lead, lock screw and two Micro O-rings. Follow the assembly instructions to maintain the specified seals.

Use the LumienPRO remote for white-temperature and brightness adjustment. A compatible transformer and the required fixture components are sold separately.

Lumien specification sheet

Compatible Micro bollard components

For a Micro bollard assembly, compare LAB-103 / BQCM-CAP-103-A frosted cap with brass top and LAB-104 / BQCM-CAP-104-A frosted cap without brass top. The cap and mounting assembly are separate from this LED module.

Match the assembly height with LAB-085 4-inch Micro bollard riser or LAB-086 14-inch Micro bollard riser.

Compatible Brass Micro accessories

Choose the components for your installation below. Accessories are sold separately; select the housing, light distribution and mounting arrangement for the same system.
