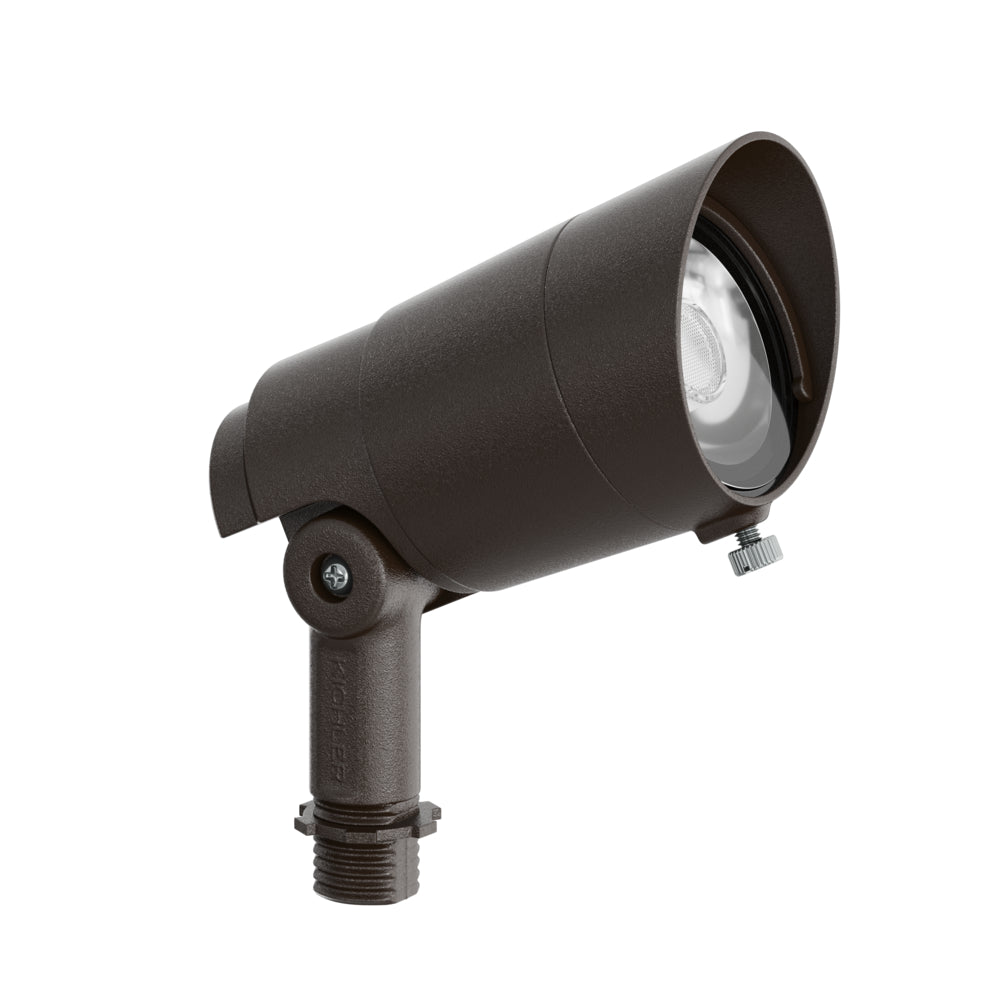

Kichler 16301AZT Integra 200 lm 60° LED accent light – Architectural Bronze

Product Description

The Kichler 16301AZT Integra spreads 200 lumens through a fixed 60° beam for a wider pool of landscape light. Its Architectural Bronze cast aluminum housing keeps the appearance subdued while the adjustable knuckle helps direct light onto the intended area. This model is useful when beam width matters more than concentrating light on one narrow subject. Choose the 2700K or 3000K version before installation, then pair it with a compatible low voltage system and optional PLC dimming control.

Planning your installation

A low voltage landscape transformer and cable are required separately. Dimming from 100% to 10% requires the Kichler 15DM20SS PLC Dimmer, sold separately. The aiming knuckle adjusts fixture direction up to 90°; it does not change the beam spread.

For glare control, compatible optional accessories include the 16293AZT long cowl and 16294BK hex louver. Choose the color temperature below and use the full SKU for ordering.

Ordering options

Explore Kichler landscape lighting, compare accent lights, and plan your power supply with our low voltage transformers.

Specification sheet · Installation instructions

Technical specifications
SKU16301AZT27
Specifications
Light and beamIntegrated LED; 200 lumens; fixed 60° beam; 80 CRI
Color temperature 2700K or 3000K by selected SKU; not field selectable
Electrical12V landscape system; 9–15VAC operating range; 1.9W; 2.6VA at 15VAC
Housing and protectionCast aluminum; Architectural Bronze; Wet Location, IP66; 2kV surge protection
Dimensions and lead2.59 in W × 5.14 in L × 4.38 in H; 48 in lead wire
IncludedOne fixture, one 8 in mounting stake, and two gel-filled wire nuts
Ordering options
SKUColor Temperature
16301AZT272700K
16301AZT303000K
Sku: 16301AZT27
Vendor: Kichler
$149.99
