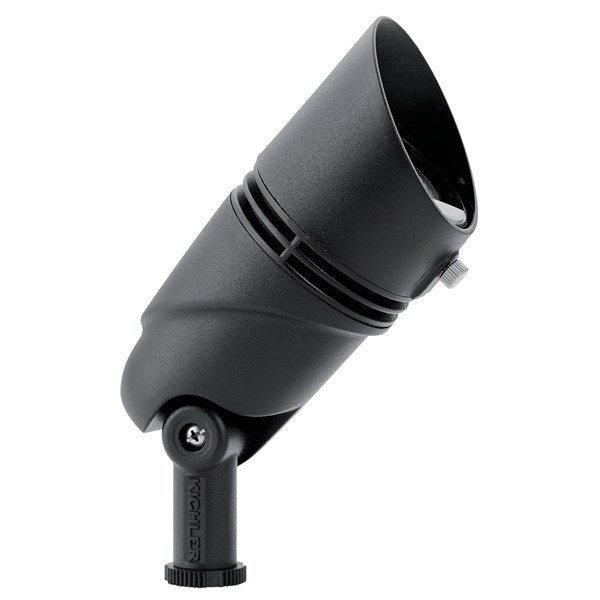

Kichler 16161BKT27 35° 2700K VLO LED floodlight

Product Description

The Kichler 16161BKT27 is a 12V integrated LED VLO high-lumen floodlight in Textured Black. Its 35-degree optic provides a medium flood for balanced coverage on trees, columns and façade details, while the 2700K warm-white output keeps the light specification clear at selection time.

Specifications

16161BKT27 specifications
Model 16161BKT27
Product type 12V VLO high-lumen LED floodlight
Finish Textured Black
Primary material Aluminum
Light source Integrated LED
Color temperature 2700K
Color rendering index 80 CRI
Beam angle 35°
Selectable light output 1,000 or 1,200 lumens
Power at 12V AC 14W or 18W, according to selected output
Input voltage 12V; 9–15V AC operating range
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts and magnetic key

Beam selection and installation planning

Choose the 35° floodlight when the layout calls for a medium flood for balanced coverage on trees, columns and façade details. Use Kichler’s photometric tables to compare beam width and illumination at the planned mounting distance before finalizing spacing. The supplied magnetic key switches between the 1,000- and 1,200-lumen settings without opening the fixture; this is a VLO output control, not conventional dimming.

Keep the transformer load and voltage drop within the manufacturer’s limits. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16161BKT27 product details · Kichler VLO high-lumen specification and photometric guide · Manufacturer instruction sheet
