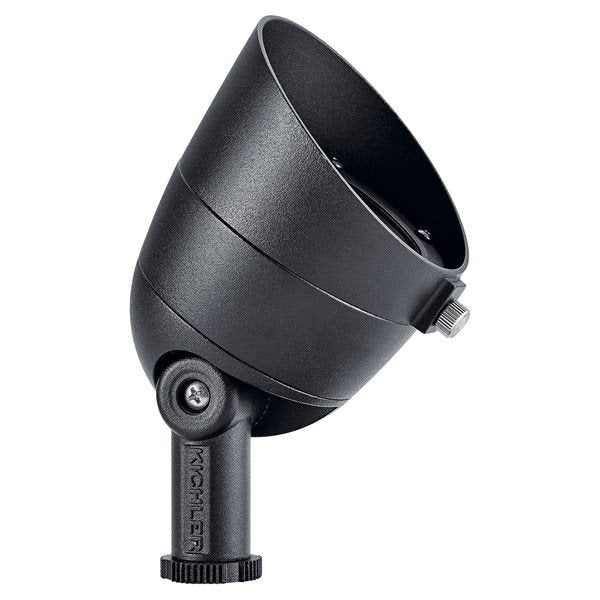

Kichler 16156BKT30 10° 3000K 500 lm LED spotlight

Product Description

The Kichler 16156BKT30 is a 12V integrated LED landscape spotlight with a 10-degree optic, 500-lumen output and 3000K clean warm-white light. Its Textured Black housing is aluminum, and the compact adjustable fixture is intended for a concentrated beam for defined focal points such as narrow columns, tree trunks and architectural details.

Specifications

16156BKT30 specifications
Model 16156BKT30
Product type 12V integrated LED landscape spotlight
Finish Textured Black
Primary material Aluminum
Light source Integrated LED
Color temperature 3000K
Color rendering index 80 CRI
Beam angle 10°
Delivered light output 500 lumens
Nominal wattage 7W
Volt-amperes 10 VA
Input and operating voltage 12V input; 9–15V AC operating range
Dimensions 4.50 in. H × 3.50 in. L × 3.25 in. W
Location rating Wet location; IP66
Mounting Ground stake
Surge protection 4,000V
Included installation items Ground stake and gel-filled wire nuts
Manufacturer lifecycle status Discontinued

Beam selection and installation planning

Choose this 10° spotlight when the lighting plan calls for a concentrated beam for defined focal points such as narrow columns, tree trunks and architectural details. Use Kichler’s photometric information to compare beam width and illumination at the actual aiming distance before setting fixture spacing. The 3000K source should be coordinated with nearby fixtures so the finished scene has a deliberate color-temperature match.

Include this fixture’s 10 VA load when sizing the landscape transformer and circuit. The 9–15V AC operating range does not replace a voltage-drop calculation: select conductor size for the total circuit load and run length, then verify voltage at the fixture under load. Follow local codes and Kichler’s instructions for wiring, mounting and final aiming.

Manufacturer resources

Kichler 16156BKT30 product details · Kichler 16156 specification and photometric sheet · Manufacturer installation instructions · Kichler warranty information

Dimension diagram of the Kichler 16156BKT30 LED accent light, showing housing length, height and lens width.
