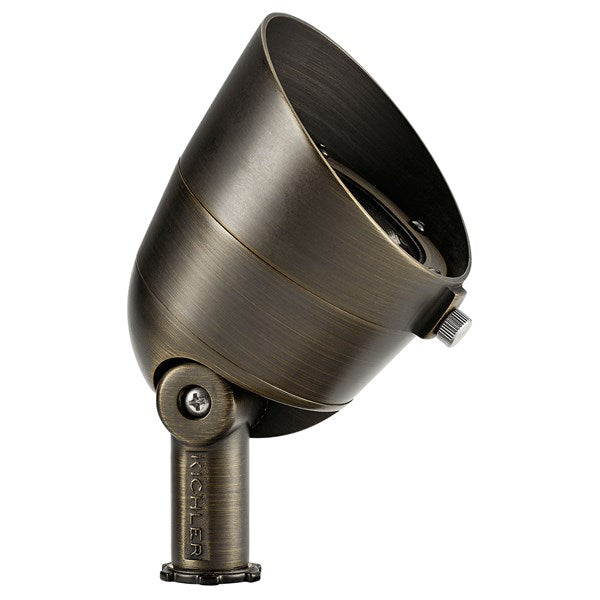

Kichler 16155CBR27 60° 2700K 300 lm LED wide floodlight

Product Description

The Kichler 16155CBR27 is a 12V integrated LED landscape wide floodlight with a 60-degree optic, 300-lumen output and 2700K warm-white light. Its Centennial Brass housing is brass, and the compact adjustable fixture is intended for a broad spread for wide canopies, walls and other large target surfaces.

Beam selection and installation planning

Choose this 60° wide floodlight when the lighting plan calls for a broad spread for wide canopies, walls and other large target surfaces. Use Kichler’s photometric information to compare beam width and illumination at the actual aiming distance before setting fixture spacing. The 2700K source should be coordinated with nearby fixtures so the finished scene has a deliberate color-temperature match.

Include this fixture’s 5.25 VA load when sizing the landscape transformer and circuit. The 9–15V AC operating range does not replace a voltage-drop calculation: select conductor size for the total circuit load and run length, then verify voltage at the fixture under load. Follow local codes and Kichler’s instructions for wiring, mounting and final aiming.

Manufacturer resources

Kichler 16155CBR27 product details · Kichler 16155 specification and photometric sheet · Manufacturer installation instructions · Kichler warranty information

Technical specifications
SKU16155CBR27
Product type12V integrated LED landscape wide floodlight
Finish Centennial Brass
Primary materialBrass
Light source Integrated LED
Color temperature 2700 K
Color rendering index 80 CRI
Beam angle 60.0 °
Delivered light output 300 lm
Nominal wattage3.5W
Volt-amperes5.25 VA
Input and operating voltage12V input; 9–15V AC operating range
Dimensions 4.50 in. H × 3.50 in. L × 3.25 in. W
Location rating Wet location; IP66
MountingGround stake
Surge protection4,000V
Included installation itemsGround stake and gel-filled wire nuts
Manufacturer lifecycle statusDiscontinued
