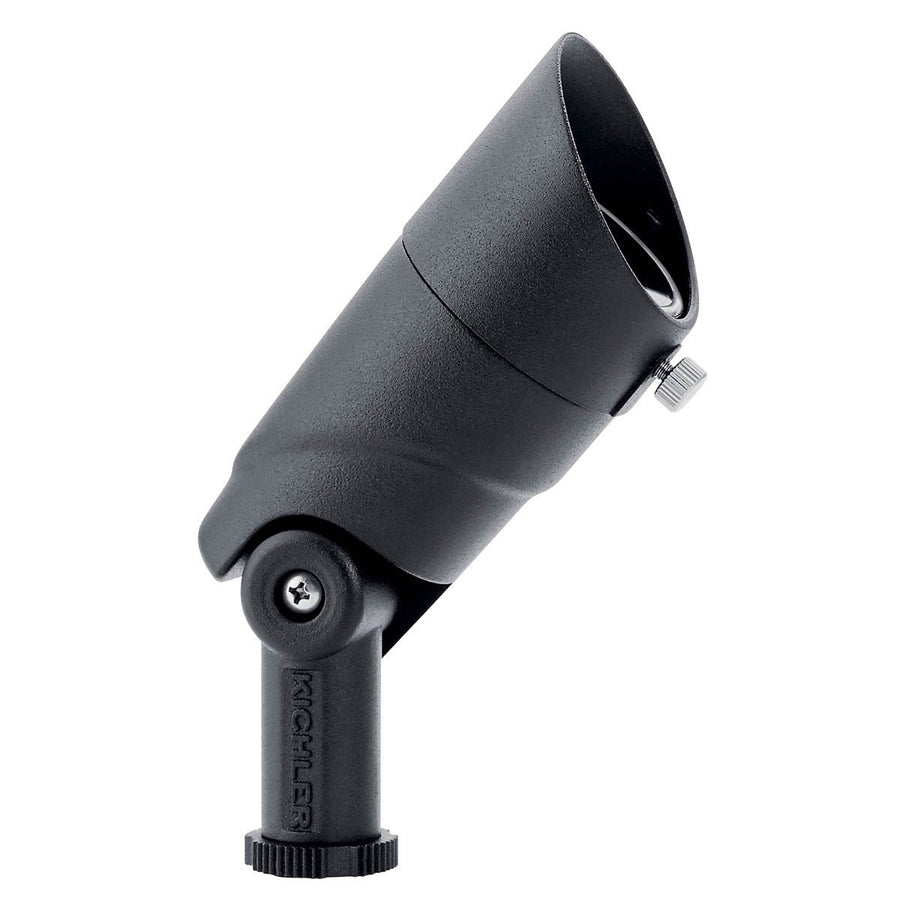

Kichler 16016BKT30 35° 3000K VLO LED floodlight

Product Description

The Kichler 16016BKT30 is a small 12V integrated LED VLO floodlight in Textured Black. Its 35-degree optic provides a medium flood for balanced coverage on trees, façades and architectural details. The 3000K clean warm-white color temperature and three field-selectable output levels make the exact light specification clear before layout and aiming.

Specifications

16016BKT30 specifications
Model 16016BKT30
Product type Small 12V VLO LED floodlight
Finish Textured Black
Primary material Aluminum
Light source Integrated LED
Color temperature 3000K
Color rendering index 80 CRI
Beam angle 35°
Selectable light output 100, 200 or 300 lumens
Maximum nominal wattage 5.5W
Input voltage 12V; 9–15V AC operating range
Dimensions 3.75 in. H × 4.50 in. L × 2.00 in. W
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts, locknut and magnetic key

Beam selection and installation planning

Choose the 35° floodlight when the plan calls for a medium flood for balanced coverage on trees, façades and architectural details. Use Kichler’s photometric tables to compare beam width and illumination at the intended mounting distance before setting fixture spacing. The magnetic key changes the 100-, 200- and 300-lumen settings without opening the sealed fixture; it is a VLO output control, not conventional dimming.

Include this fixture’s maximum load when sizing the landscape transformer, and verify voltage at the fixture after accounting for wire length and conductor size. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16016BKT30 product details · Kichler 16016 specification and photometric guide · Manufacturer instruction sheet

Dimension diagram of the Kichler 16016BKT30 VLO accent light, showing fixture height, length and lens opening.
