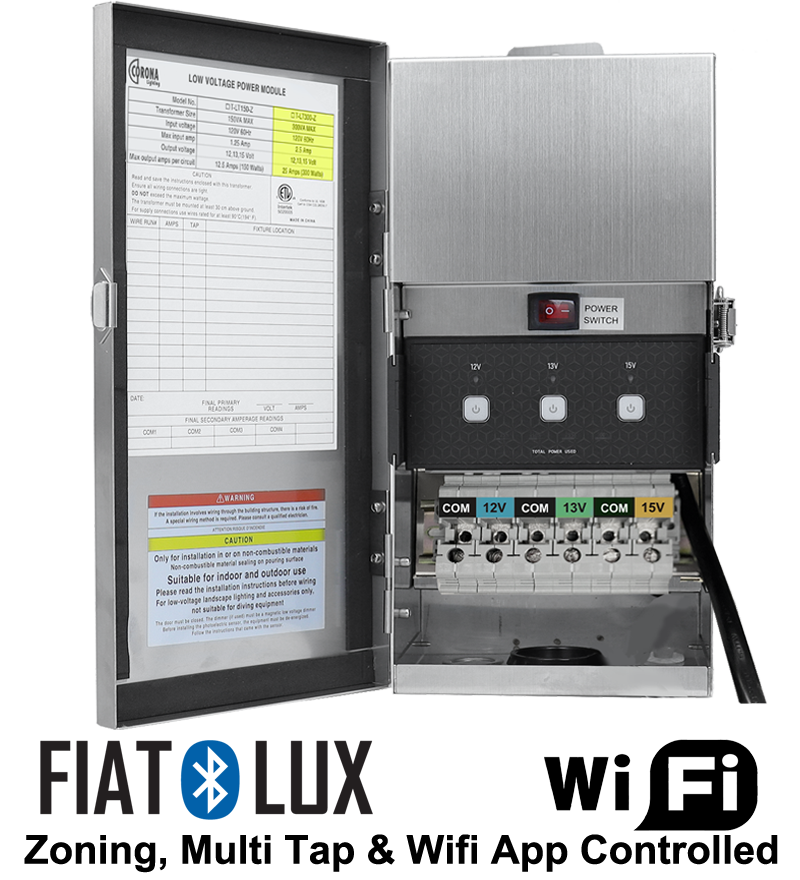

Corona Lighting T-LT300-Z 300W Smart Wi-Fi Transformer

The Corona Lighting T-LT300-Z is a 300W smart landscape lighting transformer with three separately controlled zones. Use the Corona BT App to schedule different areas of your yard, or operate the transformer manually.

Three-zone Wi-Fi lighting control

Separate path, garden and patio lighting into zones with their own schedules. Built-in dual onboard antennas support a 2.4 GHz Wi-Fi connection. The stainless-steel enclosure houses a multi-tap power supply for compatible low voltage landscape lighting.

Specifications

• SKU: T-LT300-Z
• Capacity: 300W total
• Primary voltage: 120V
• Secondary taps: 12V, 13V and 15V, with three COM connections
• Controls: manual or Corona BT App; three separately controlled and scheduled zones
• Network: 2.4 GHz Wi-Fi
• Enclosure and finish: stainless steel
• Dimensions: 5⅝ inches wide × 13¾ inches high
• Primary protection: thermal shut-off
• Large terminal block for multiple low voltage cable connections
• Warranty: limited lifetime coverage on coil and enclosure

Plan your system

Size the connected lighting load within the transformer’s total capacity and follow Corona’s per-zone limits and wiring instructions. Confirm fixture voltage requirements, cable sizing and Wi-Fi coverage before installation. Independent zone scheduling requires separately wired lighting circuits.
