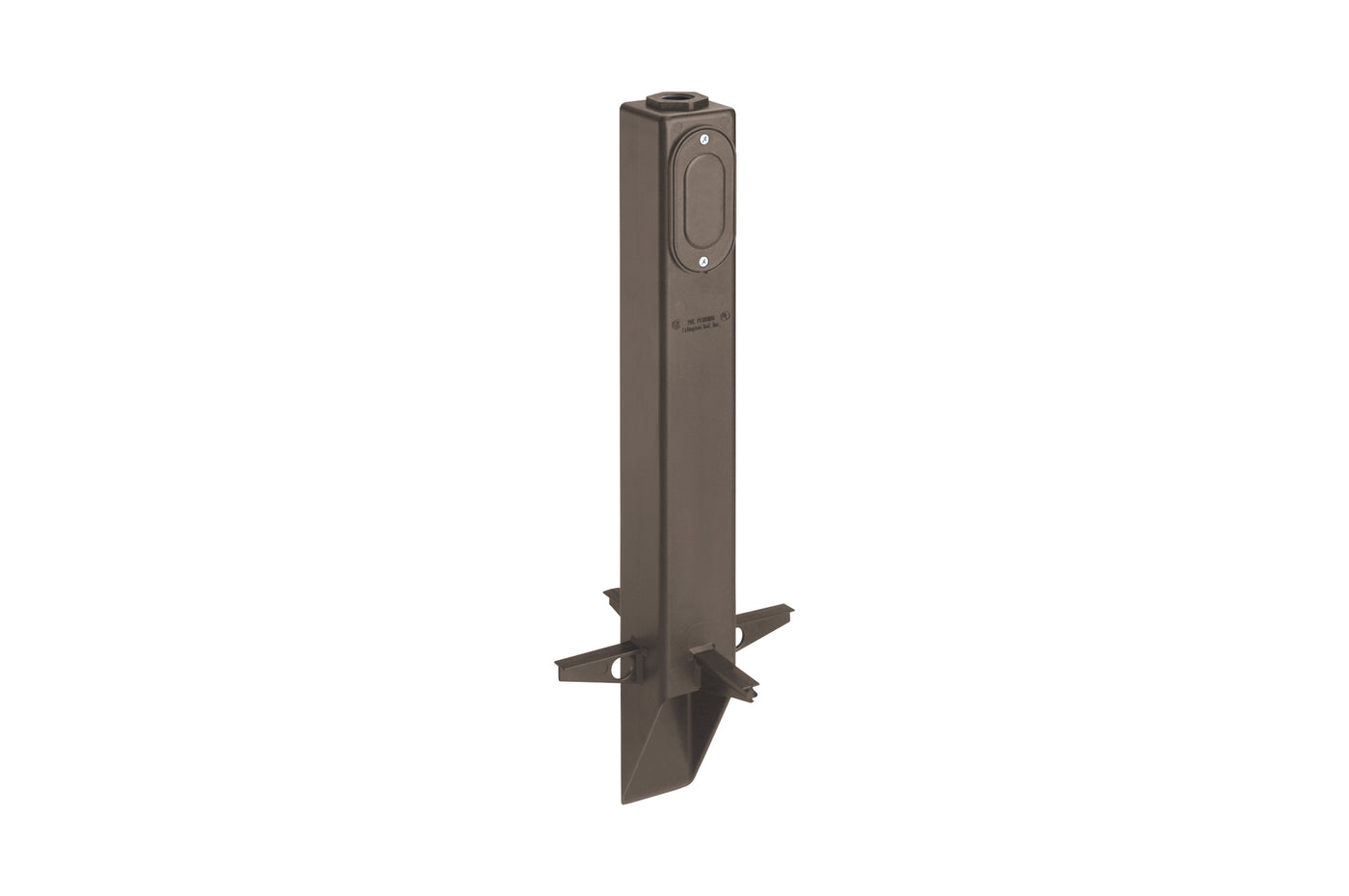

Arlington GPLN19BR Gard-N-Post 19.5 in. Fixture Support Post, Bronze

Mount a compatible outdoor light where you need it in a garden bed, beside a walkway, or near a patio with the Arlington GPLN19BR Gard-N-Post. This bronze support post gives a three-wire fixture a threaded mounting point without requiring a nearby wall.

The 19.5-inch post has built-in stabilizers to help hold it in the soil and an angle-cut lower end that allows access to underground wiring. Its nonmetallic reducing bushing accommodates a compatible 1/2-inch NPT fixture; the post's 3/4-inch NPT opening provides the other mounting option. Choose it for a fixture-support installation rather than an outlet post.

Key Features

• UV-rated plastic is suited to outdoor exposure.
• Molded-in bronze color avoids a painted finish that can chip away.
• Built-in stabilizers help support the post; openings allow additional support material where needed.
• Angle-cut bottom helps provide access to underground wiring.
• Installed access-panel cover and gasket provide access for electrical connections.
• Nonmetallic reducing bushing supports the specified three-wire fixture application.

Common Uses

• Supporting a compatible three-wire landscape light in a planting bed.
• Adding a threaded fixture mounting point along a walkway or beside a patio.
• Replacing a matching low-profile fixture support while retaining the intended NPT mounting size.

What's Included

• One GPLN19BR Gard-N-Post support.
• One nonmetallic fixture-mounting reducing bushing, installed.
• One access-panel cover and one gasket.
• Two #6-32 x 5/8-inch screws.

Light fixture and electrical wiring are sold separately.

Technical Specifications

• Brand: Arlington.
• Model: GPLN19BR; series: Gard-N-Post.
• Application: support for three-wire outdoor light fixtures.
• Color: Bronze (brown tone), molded throughout the plastic.
• Material: UV-rated plastic; nonmetallic construction.
• Fixture opening: 3/4-inch NPT with installed 3/4-inch x 1/2-inch NPT nonmetallic reducing bushing.
• Fixture thread compatibility: 1/2-inch or 3/4-inch NPT.
• Post weight: 1.080 lb each.
• UPC-A: 018997761927.
• Unit quantity: one support post.
• Country of origin: USA.

Dimensions

• Overall post height: 19.500 in. (19-1/2 in.).
• Post body width: 2.250 in. (2-1/4 in.).
• Overall stabilizer span: 7.125 in. x 7.125 in. (7-1/8 in. x 7-1/8 in.).

Overall height includes the portion installed below ground. The 2.250-inch body width does not include the stabilizers; the NPT sizes describe the fixture connection rather than the post's outside dimensions.

Compatibility & Installation Notes

Use a three-wire outdoor fixture with the specified NPT mounting connection. The GPLN19BR has a nonmetallic bushing and is a different selection from the GPL19BR model with a metal grounding bushing. Do not substitute a two-wire fixture or copy the grounding arrangement from another Gard-N-Post model.

Plan the fixture position, soil support, underground wiring route and access-panel clearance before installation. Keep the panel accessible for service, and use the stabilizer openings for additional support when the installation requires it. A qualified installer should complete the outdoor electrical connections and grounding with the power off, following the fixture instructions and applicable requirements.

The GPLN19BR is a fixture support, not a complete lamp, transformer or GFCI outlet post. Confirm the fixture's mounting and support requirements before ordering.
