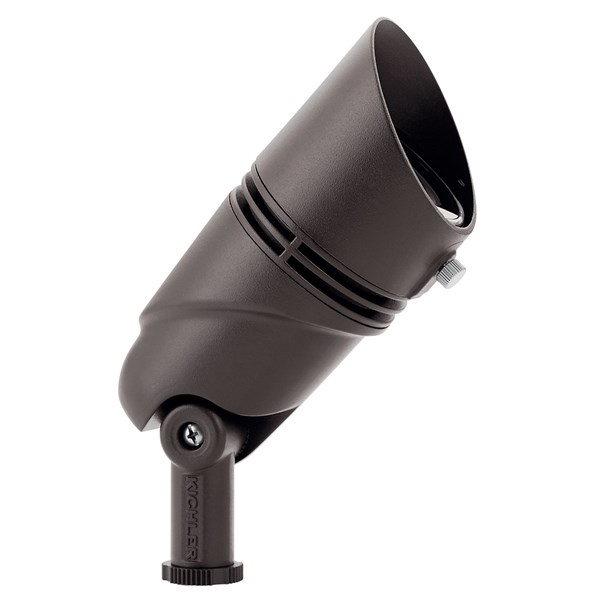

Kichler 16162AZT27 60° 2700K VLO LED wide floodlight

Product Description

The Kichler 16162AZT27 is a 12V integrated LED VLO high-lumen wide floodlight in Architectural Bronze. Its 60-degree optic provides a wide flood for broader canopies, walls and other large surfaces, while the 2700K warm-white output keeps the light specification clear at selection time.

Specifications

16162AZT27 specifications
Model 16162AZT27
Product type 12V VLO high-lumen LED wide floodlight
Finish Architectural Bronze
Primary material Aluminum
Light source Integrated LED
Color temperature 2700K
Color rendering index 80 CRI
Beam angle 60°
Selectable light output 1,000 or 1,200 lumens
Power at 12V AC 14W or 18W, according to selected output
Input voltage 12V; 9–15V AC operating range
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts and magnetic key

Beam selection and installation planning

Choose the 60° wide floodlight when the layout calls for a wide flood for broader canopies, walls and other large surfaces. Use Kichler’s photometric tables to compare beam width and illumination at the planned mounting distance before finalizing spacing. The supplied magnetic key switches between the 1,000- and 1,200-lumen settings without opening the fixture; this is a VLO output control, not conventional dimming.

Keep the transformer load and voltage drop within the manufacturer’s limits. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16162AZT27 product details · Kichler VLO high-lumen specification and photometric guide · Manufacturer instruction sheet

Dimensioned image of the Kichler 16162AZT27 VLO accent light, showing housing length, width and mounting height.

Sku: 16162AZT27
Vendor: Kichler
