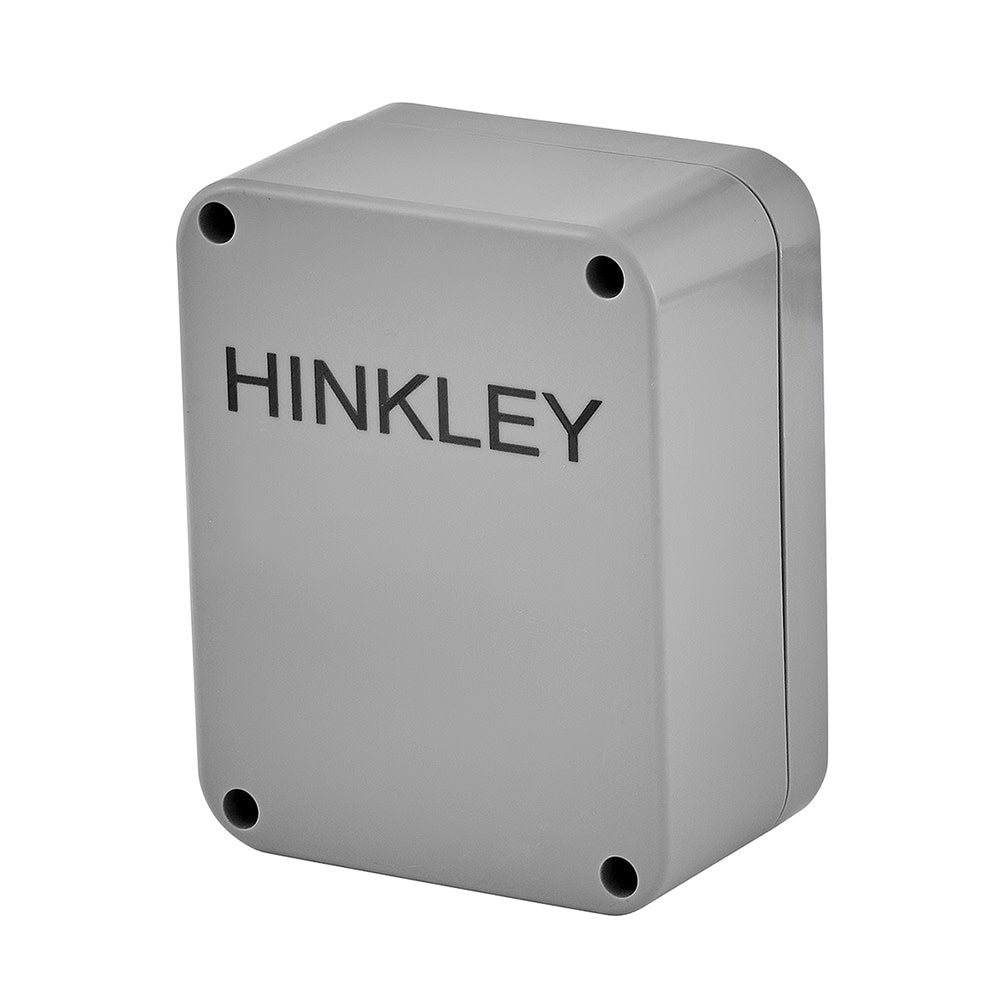

Hinkley 0300WLC Wi-Fi Landscape Timer, Zone Control & Dimmer

The Hinkley 0300WLC brings Wi-Fi scheduling, zone control and dimming to your landscape lighting. Manage four zones through the Hinkley Home Automation App over a 2.4 GHz Wi-Fi network, with support for Amazon Alexa and Google Home.

Timers, zones and dimming

• Two dimming zones support up to 75W each.
• Two switching zones support up to 100W each.
• All four zones share a 300W total controller limit.
• Create schedules and combine zones on the same program.
• View per-zone and total loading in the app.

Compatibility and installation

Mounts to the side of a Hinkley Pro Series transformer and takes power from its output tap. A separate transformer is required. Allow for controller power consumption: Hinkley specifies a 270W maximum output when used with a 300W transformer. Variable Output LumaCORE fixtures must use the switching zones only.

Specifications

Model 0300WLC • 12V • Light Gray composite enclosure • Wet rated • 3.5 inches wide × 4.5 inches high × 3.25 inches deep • UPC 640665929256.

Browse landscape lighting timers and controllers, dimmers and Hinkley lighting. Manufacturer specifications and instructions.

Does every zone dim?

No. Two zones provide dimming up to 75W each, and two provide on/off switching up to 100W each. All zones share the controller's 300W limit, subject to the available transformer capacity.

Replacing a discontinued 0150WLC?

The 0150WLC has been discontinued. Consider the 0300WLC for Wi-Fi scheduling, two dimming zones and two switching zones. Confirm compatibility with your transformer and connected fixtures before replacing an existing controller.
