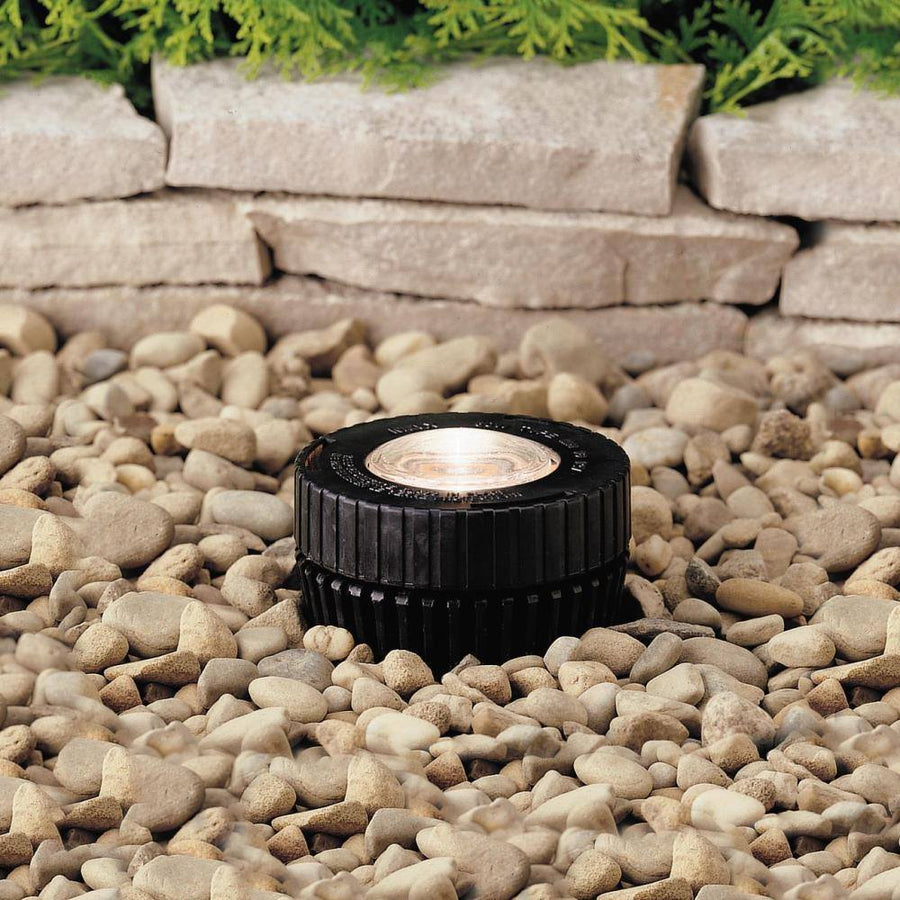

Kichler 15190BK 12V MR16 Mini In-Ground Well Light

The Kichler 15190BK mini in-ground well light provides a compact housing for an MR16 lamp in a 12V AC landscape lighting system. Its black thermoplastic composite resin body measures 4 inches wide and 5 inches high, making it an option for discreet uplighting around planting beds and landscape features.

Choose the MR16 lamp for your lighting effect

The fixture accepts one MR16 lamp, sold separately, with a maximum lamp rating of 50W. Select a compatible lamp to suit the desired beam spread and color temperature. The 50W figure is the fixture limit, not the power consumption of an included lamp.

Specifications

• Model: 15190BK
• Input: 12V AC
• Lamp: One MR16, not included
• Maximum lamp wattage: 50W
• Housing: Thermoplastic composite resin
• Finish: Black material, not painted
• Dimensions: 4 in. wide x 5 in. high
• Lead wire: 36 in.

Installation planning

Use a compatible low-voltage landscape lighting transformer and select cable for the connected load and run length. Plan fixture placement and drainage according to the installation instructions.

Manufacturer resource

Kichler 15190BK specification sheet
