Kichler 15IGT300 300W In-Ground Landscape Transformer

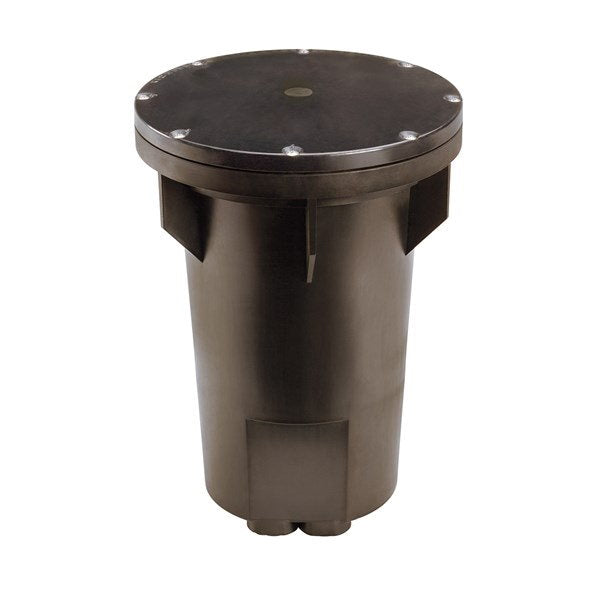

The Kichler 15IGT300 300W in-ground transformer supplies landscape lighting while keeping the power enclosure off an exterior wall. Its black cylindrical housing is designed for direct burial, with 120V input and 15V output for compatible low-voltage lighting.

Specifications

Choose the right transformer capacity

Choose the 300W model for a lighting layout that needs more capacity than the 100W version. Add the fixture loads before selecting the transformer, and check cable sizing and voltage at the fixtures. Kichler's installation sheet advises a total lamp load generally at least one-third of the transformer rating and no higher than its maximum capacity.

Plan the in-ground installation

The transformer includes four conduit plugs and a sealing-gel pack. Kichler's instructions call for a qualified electrician and place the top edge of the housing at or slightly above finished grade. For installation in concrete, the compatible 15608AZ pour kit is sold separately.

Use the instruction sheet supplied with the transformer for circuit connections and installation requirements. Plan access to the enclosure before finalizing the landscape layout.

Manufacturer warranty

Kichler lists a 10-year warranty for the 15IGT100 and 15IGT300 In-Ground Series, subject to its warranty terms.

Product documents

Kichler 15IGT300 product details and installation documents · Current specification sheet · Kichler warranty terms
