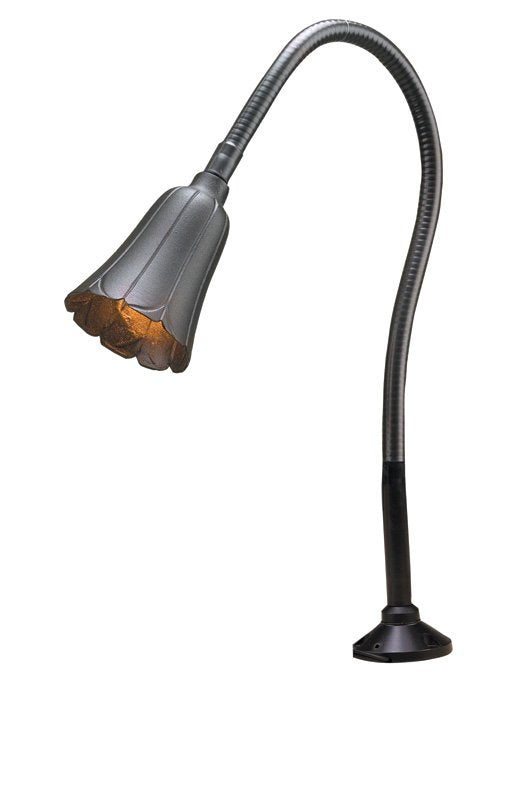

Corona CL-803-D-BK-24 24-Inch 12V Grill Light

Product Description

The Corona Lighting CL-803-D-BK-24 is a 12V BBQ grill light with a 24-inch flexible arm, black finish and tulip head. Aim the head toward your cooking area and switch the light at its canopy base. Choose a fixture-only version or one of two factory-listed MR16 LED lamp configurations.

Choose your lamp option

Option Included lamp Light output
No Lamp — Fixture Only None; compatible 12V MR16 lamp required separately Depends on the lamp selected
Lower output — 2700K LED L-ED16-3W-FL 3.5W, 270 lumens, 45° flood
Brighter — 2700K LED L-ED16-COB5W-WF 5W, 450 lumens, 60° wide flood

Both lamp-included options provide warm 2700K light. The 3.5W option provides a narrower flood beam; the 5W COB option offers more lamp output and a wider beam. The selected option determines whether a lamp is included. All versions use a replaceable MR16 lamp.

Fixture specifications

Fixture model CL-803-D-BK-24
Housing / finish Die-cast aluminum / Black
Flexible arm 24-inch steel arm, with black polyolefin shrink-wrap covering
Head dimensions 3.5-inch diameter × 5-inch length
Lens / socket Clear, tempered, heat-resistant glass / bi-pin MR16 socket
Mounting / switch 3-inch round aluminum canopy with rubber-boot-covered on/off push button
Lead 3-foot direct-burial cable
Power Remote 12V transformer required; manufacturer specifies 9–17V operation with compatible LED lamps

Planning your grill lighting

Check mounting space, cable routing and clearance for the grill lid before installation. Position and aim the flexible head to illuminate the cooking area while limiting glare. Follow the fixture and grill installation instructions for placement and heat clearance. A remote transformer and wiring connectors are sold separately.

Browse grill and outdoor kitchen lighting, landscape lighting transformers and wire connectors. Compare the Corona CL-807-D silver plated grill light for another head style and finish.

Manufacturer specifications

Download the Corona CL-803-D specification sheet (PDF). This page offers the 24-inch configuration; manufacturer documents may illustrate other lengths.

Sku: CL-803-D-BK-24
Vendor: Corona Lighting
$190.00
