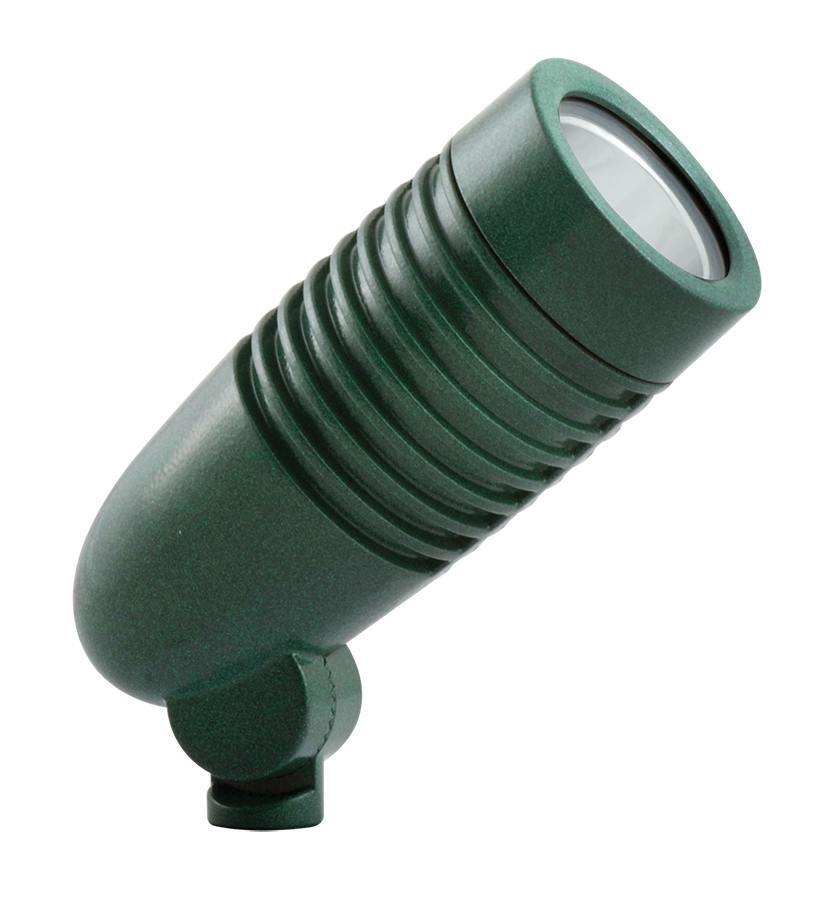

RAB Lighting LFLED5YVG 5W Compact LED Floodlight

Compact 5 Watt LED floodlight perfectly suited for small-scale landscape lighting applications. 85% more energy efficient than its 35 Watt MR16 equivalent. Specialized microprismatic lens delivers even and consistent light. Utilizes line voltage (120V-240V).

Color: Verde Green

Weight: 1.5 lbs

Driver Info

• Type: Constant Current
• 120V: 0.1A
• 208V: 0.06A
• 240V: 0.05A
• 277V: N/A
• Input Watts: 5W
• Efficiency: 98%

LED Info

• Watts: 5W
• Color Temp: 3000K (Warm)
• Color Accuracy: 86 CRI
• L70 Lifespan: 100,000
• Lumens: 208
• Efficacy: 41 LPW

Spec Sheet

Technical Specifications

Listings

• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.

LED Characteristics

• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LED: 5 Watt high output, long-life LED.
• Color Consistency: 3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Accuracy: 86 CRI
• Color Temperature (Nominal CCT): 3000K
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2008.

Optical

• Spot Lens: Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Spot reflector kit available here.
• Fixture Efficacy: 41 Lumens per Watt
• NEMA Type: 4H x 4V

Construction

• Lens: Microprismatic diffusion lens for smooth and even light distribution.
• Cold Weather Starting: Minimum starting temperature is -40°F/-40°C.
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
• Thermal Management: Optimized using computational fluid dynamics software to ensure long LED and driver lifespan.
• Housing: Precision die-cast aluminum housing, hood and mounting arm.
• Gaskets: High Temperature Silicone.
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant.

Electrical

• Driver: Constant Current, Class 2, 100-240V, 50-60Hz, 100-240VAC 0.18A.
