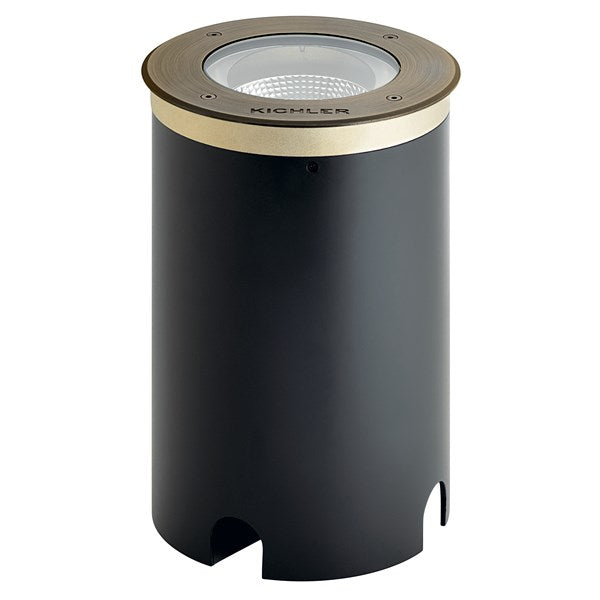

Kichler 16230CBR40 20W 4000K 45° LED Well Light

Kichler 16230CBR40 is a C-Series integrated LED in-ground well light with a 45-degree beam and 4000K light. Designed for 120-277V AC installations, its 1,625-lumen output can highlight landscape features, architectural details and statuary from ground level.

Aim the beam without opening the sealed fixture

An external adjustment allows up to 15 degrees of beam tilt in either direction. The cast-brass fixture sits in a polymer installation sleeve, with a Centennial Brass trim ring at the surface.

Specifications

• Model: 16230CBR40
• Series: C-Series
• Input: 120-277V AC
• Light source: Integrated LED
• Nominal wattage: 20W
• Color temperature: 4000K
• Beam angle: 45 degrees
• Light output: 1,625 lumens
• Color rendering: 80+ CRI
• Housing: Cast brass with polymer installation sleeve
• Finish: Centennial Brass

Installation and accessories

This line-voltage fixture requires installation by a qualified electrician. Follow the manufacturer instructions for supply wiring, watertight connections, drainage and sleeve placement. The 16290SS stainless steel trim ring is a separately ordered accessory.

Manufacturer resources

Kichler C-Series specification and ordering guide | Installation instructions
