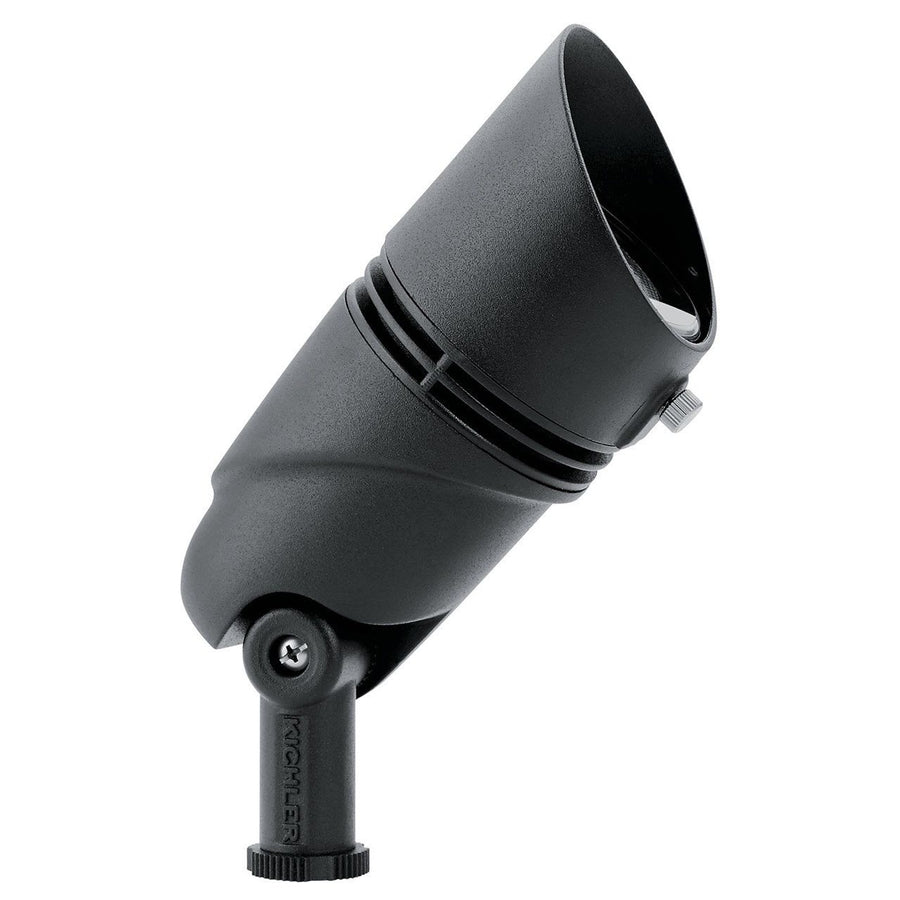

Kichler 16020BKT30 60° 3000K VLO LED wide floodlight

Previous Product | Next Product

Product Description

The Kichler 16020BKT30 is a large 12V integrated LED VLO wide floodlight in Textured Black. Its 60-degree optic provides a wide flood for broader canopies, walls and other large target surfaces. The 3000K clean warm-white color temperature and three field-selectable output levels make the exact light specification clear before layout and aiming.

Specifications

16020BKT30 specifications
Model 16020BKT30
Product type Large 12V VLO LED wide floodlight
Finish Textured Black
Primary material Aluminum
Light source Integrated LED
Color temperature 3000K
Color rendering index 80 CRI
Beam angle 60°
Selectable light output 400, 600 or 835 lumens
Maximum nominal wattage 12W
Input voltage 12V; 9–15V AC operating range
Dimensions 4.50 in. H × 6.00 in. L × 2.75 in. W
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts, locknut and magnetic key

Beam selection and installation planning

Choose the 60° wide floodlight when the plan calls for a wide flood for broader canopies, walls and other large target surfaces. Use Kichler’s photometric tables to compare beam width and illumination at the intended mounting distance before setting fixture spacing. The magnetic key changes the 400-, 600- and 835-lumen settings without opening the sealed fixture; it is a VLO output control, not conventional dimming.

Include this fixture’s maximum load when sizing the landscape transformer, and verify voltage at the fixture after accounting for wire length and conductor size. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16020BKT30 product details · Kichler 16020 specification and photometric guide · Manufacturer instruction sheet
