Total Light TL-TRAN100-SS 100W Transformer – 12–15V

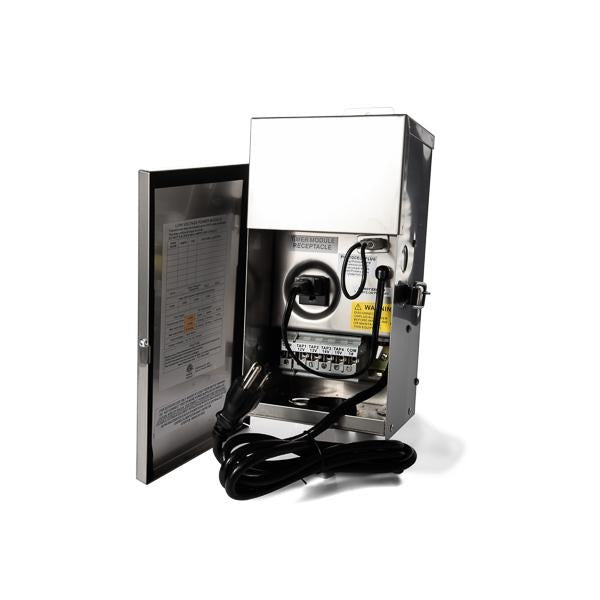

The Total Light TL-TRAN100-SS is a 100-watt low-voltage landscape-lighting transformer with a 12–15V multi-tap output range. A stainless-steel cabinet houses the toroidal core, wiring compartment and protection components.

Transformer specifications

• SKU: TL-TRAN100-SS
• Rated capacity: 100W
• Output range: 12–15V, multi-tap
• Cabinet: stainless steel
• Core: toroidal
• Use: indoor or outdoor, subject to installation instructions
• Power cord: 6 feet
• Lockable door and accessible wiring compartment
• Protection: surge suppressor, primary thermal protection and secondary magnetic circuit breaker
• Timing: plug-in-ready receptacle; timing control selected separately
• UPC: 810016890157

Size the complete lighting system

For a smaller lighting layout, total the actual lamp or integrated-fixture wattage before choosing this 100W model. Leave the capacity margin required by the installation instructions; do not use the rating as a target operating load.

Select the output tap using cable length, wire gauge, connected load and measured voltage at the fixtures. Keep each lamp or fixture within its specified voltage range. Plan accessible mounting and control access, and follow the manufacturer's installation instructions.

Confirm timer compatibility and current component-specific warranty terms before ordering; a general lifetime heading does not describe every electrical component.
