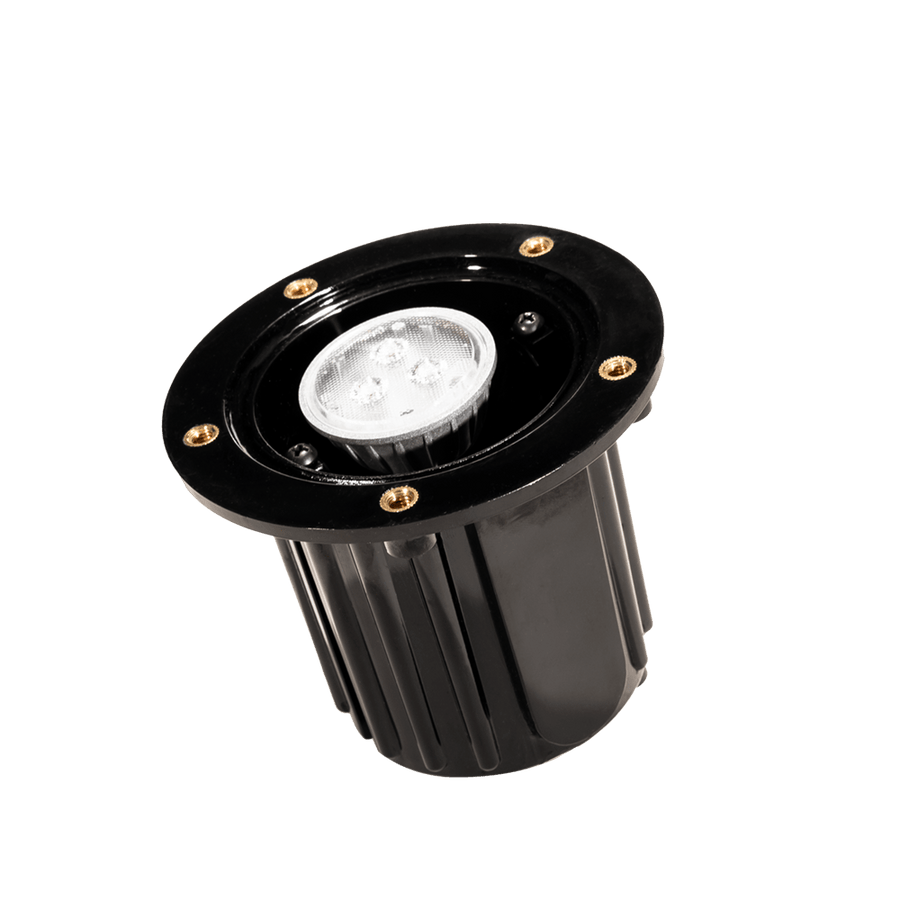

Total Light TL-WLBASE Modular MR16 Well-Light Body – 12V

Previous Product | Next Product

Product Description

The Total Light TL-WLBASE is the black ABS body for a modular 12V MR16 well light. It installs below the finished surface, accepts a separately sold compatible Total Light brass top and provides up to 25 degrees of internal lamp-bracket adjustment.

Product details

  • SKU: TL-WLBASE
  • Component: modular well-light body
  • Voltage: 12V
  • Lamp type: replaceable MR16; lamp not included
  • Material / color: black ABS
  • Dimensions: 4.875 in wide × 4.5 in high
  • Aiming: internal lamp bracket adjusts up to 25°
  • Lead wire: 3 ft direct-bury wire
  • Certification: ETL
  • UPC: 810016890034

Build the compatible fixture

A brass top, MR16 lamp, low-voltage transformer, main cable and approved outdoor connectors are required separately. Select either a compatible clear-glass or louvered Total Light top, then choose the lamp beam, output and color temperature. Prepare a stable, properly drained installation location; no drive-over or submersible rating is stated.

Total Light manufacturer details

Sku: TL-WLBASE
Vendor: Total Light
$27.03
