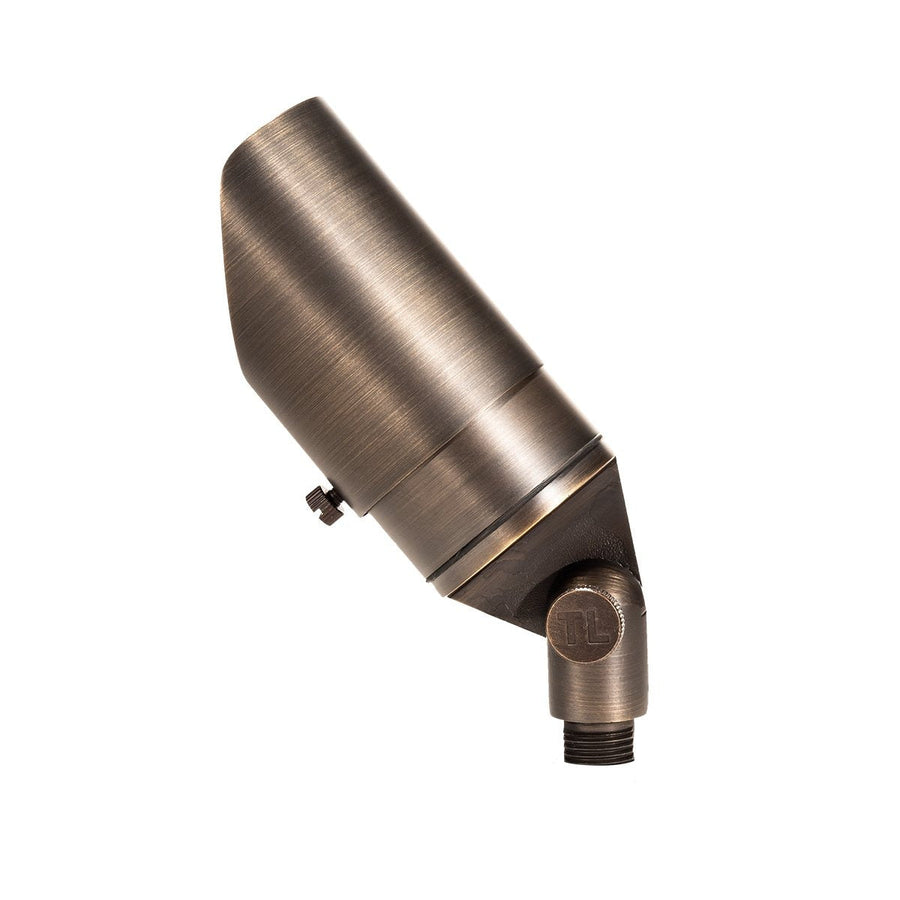

Total Light TL-UL300-CB Blaze Brass Spotlight – 12V MR16

The Total Light TL-UL300-CB Blaze is a spotlight with an adjustable shroud for glare control. The Classic Brass fixture operates on a compatible 12V lighting system and uses a separately selected MR16 LED lamp.

Spotlight specifications

• SKU: TL-UL300-CB
• Material: solid brass
• Finish: Classic Brass
• Voltage: 12V
• Lamp/socket: replaceable LED MR16 bi-pin; lamp not included
• Maximum lamp rating: 50W
• Lead wire: 36-inch 18/2 direct-burial lighting wire
• Ground stake included
• Compatible low-voltage transformer required; not included
• UPC: 810016890041
• Adjustable shroud and aiming pivot

Select and aim the lamp

Use the pivot to aim the fixture and the adjustable shroud to manage visible glare. The shroud does not replace selecting an appropriate MR16 beam angle, output and color temperature.

The maximum lamp rating is a fixture limit, not the fixture's electrical consumption or a promise of light output. Beam angle, lumens and CCT depend on the installed lamp. Compare landscape LED lamps and size the transformer using the actual connected lamp wattage, cable layout and voltage drop.

Manufacturer product details · Exact-model specification sheet
