Kichler 16153CBR27 10° 2700K 300 lm LED spotlight

Previous Product | Next Product

Product Description

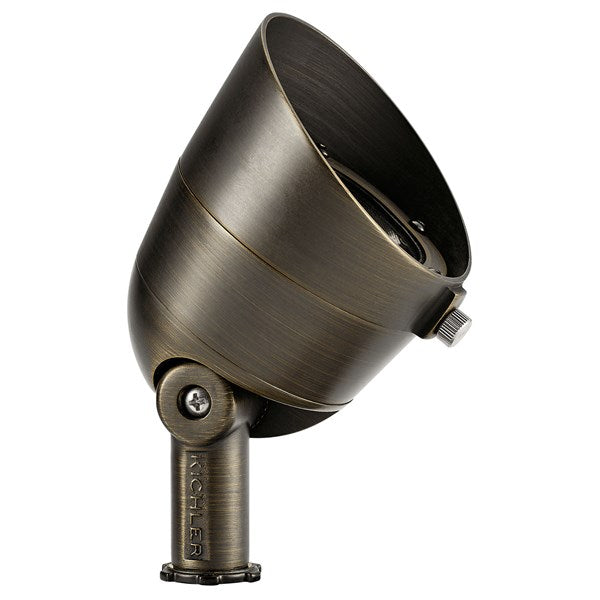

The Kichler 16153CBR27 is a 12V integrated LED landscape spotlight with a 10-degree optic, 300-lumen output and 2700K warm-white light. Its Centennial Brass housing is brass, and the compact adjustable fixture is intended for a concentrated beam for defined focal points such as narrow columns, tree trunks and architectural details.

Specifications

16153CBR27 specifications
Model 16153CBR27
Product type 12V integrated LED landscape spotlight
Finish Centennial Brass
Primary material Brass
Light source Integrated LED
Color temperature 2700K
Color rendering index 80 CRI
Beam angle 10°
Delivered light output 300 lumens
Nominal wattage 3.5W
Volt-amperes 5.25 VA
Input and operating voltage 12V input; 9–15V AC operating range
Dimensions 4.50 in. H × 3.50 in. L × 3.25 in. W
Location rating Wet location; IP66
Mounting Ground stake
Surge protection 4,000V
Included installation items Ground stake and gel-filled wire nuts
Manufacturer lifecycle status Discontinued

Beam selection and installation planning

Choose this 10° spotlight when the lighting plan calls for a concentrated beam for defined focal points such as narrow columns, tree trunks and architectural details. Use Kichler’s photometric information to compare beam width and illumination at the actual aiming distance before setting fixture spacing. The 2700K source should be coordinated with nearby fixtures so the finished scene has a deliberate color-temperature match.

Include this fixture’s 5.25 VA load when sizing the landscape transformer and circuit. The 9–15V AC operating range does not replace a voltage-drop calculation: select conductor size for the total circuit load and run length, then verify voltage at the fixture under load. Follow local codes and Kichler’s instructions for wiring, mounting and final aiming.

Manufacturer resources

Kichler 16153CBR27 product details · Kichler 16153 specification and photometric sheet · Manufacturer installation instructions · Kichler warranty information

Sku: 16153CBR27
Vendor: Kichler
$209.99
