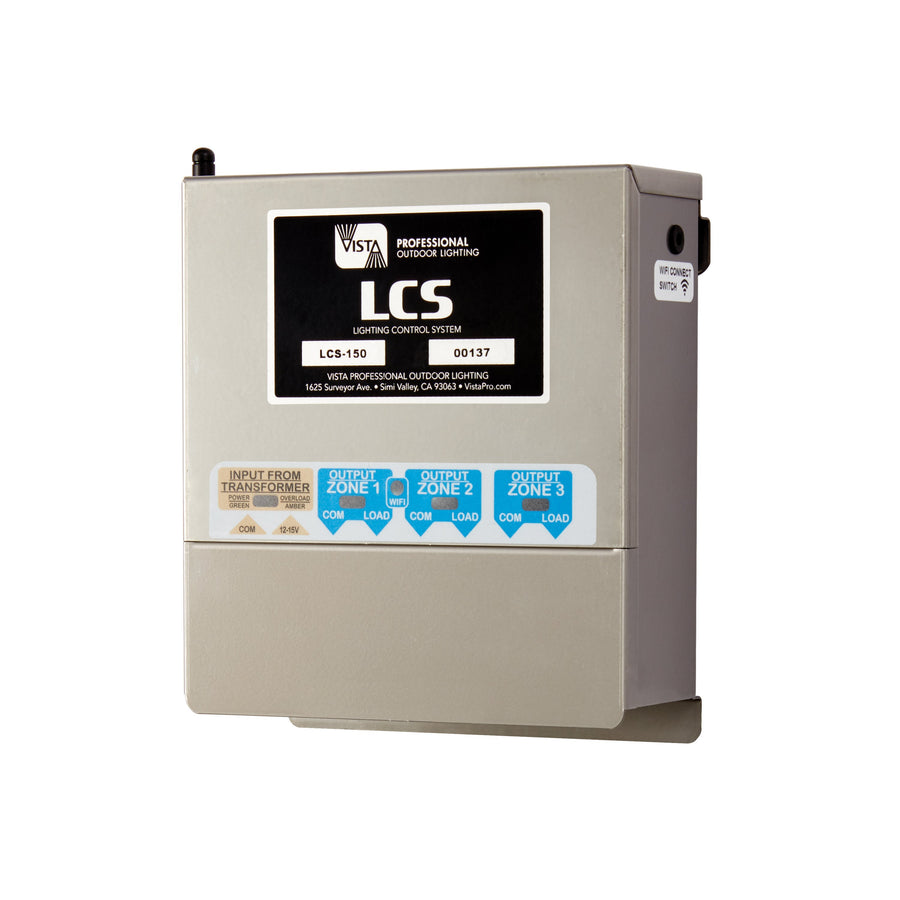

Vista Outdoor Lighting LCS-150 LCS WiFi Lighting Control System

Specification Sheet | Instruction

The LCS WiFi Lighting Control System from Vista Professional Outdoor Lighting is a low profile, lightweight, cloud based, multi-zone WiFi controller.  A proprietary, free downloadable app places control in the palm of the hand, providing multiple dimming/event programming options or manual override and can be controlled by mobile devices from anywhere.  Multi-stage dimming of all loads is quickly accomplished, regardless of light source.  Dimming is smooth: from bright to off.  Functionality is further enhanced with astronomic timing, multi-zone output from one unit, and on-the-fly override of all control aspects.  The app is user friendly, so setup is fast and easy.

Specifications:

• EXTERIOR CONSTRUCTION: 20-gauge polished, top-grade domestic, 304 stainless steel. Waterproof NEMA 3 stainless-steel housing for wall or pedestal mount
• FINISH: Polished stainless steel with Smudge-Free clear powder-coat.
• CONTROLLER CHARACTERISTICS: Desgined to control 150 watts of lighting in three individual circuits/zones Controls and dims most LED light source with any mobile device from anywhere. Easily Accessible ON/OFF/APP rocker control switch. External antenna allows for connecting to WiFi at greater distances Can be used with most all low voltage power systems available today as well as retrofitted to most existing low voltage outdoor lighting system.
• TERMINALS: Oversized input terminals; common/12-15V input (from host transformer)
• WIRING: LCS does not require 120V input. Receives power from host transformer.
