Kichler 16151AZT27 35° 2700K 200 lm LED floodlight

Previous Product | Next Product

Product Description

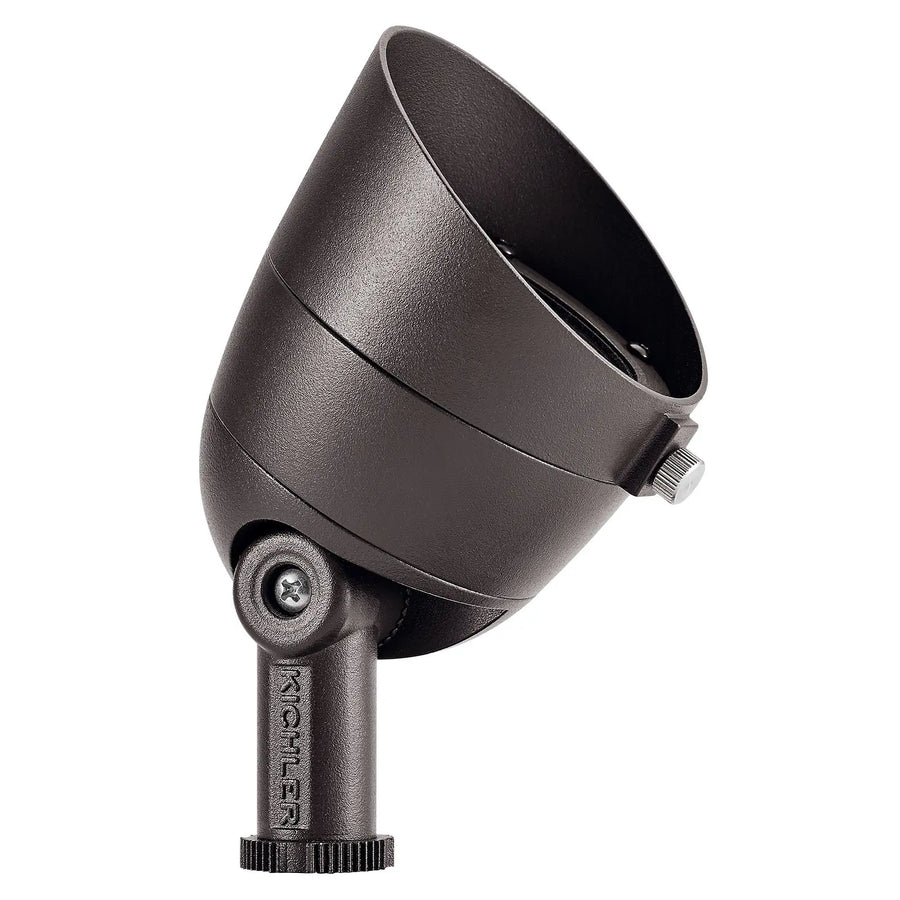

The Kichler 16151AZT27 is a 12V integrated LED landscape floodlight with a 35-degree optic, 200-lumen output and 2700K warm-white light. Its Architectural Bronze housing is aluminum, and the compact adjustable fixture is intended for a medium spread for balanced coverage on trees, façades and larger architectural details.

Specifications

16151AZT27 specifications
Model 16151AZT27
Product type 12V integrated LED landscape floodlight
Finish Architectural Bronze
Primary material Aluminum
Light source Integrated LED
Color temperature 2700K
Color rendering index 80 CRI
Beam angle 35°
Delivered light output 200 lumens
Nominal wattage 2.5W
Volt-amperes 3.5 VA
Input and operating voltage 12V input; 9–15V AC operating range
Dimensions 4.50 in. H × 3.50 in. L × 3.25 in. W
Location rating Wet location; IP66
Mounting Ground stake
Surge protection 4,000V
Included installation items Ground stake and gel-filled wire nuts
Manufacturer lifecycle status Discontinued

Beam selection and installation planning

Choose this 35° floodlight when the lighting plan calls for a medium spread for balanced coverage on trees, façades and larger architectural details. Use Kichler’s photometric information to compare beam width and illumination at the actual aiming distance before setting fixture spacing. The 2700K source should be coordinated with nearby fixtures so the finished scene has a deliberate color-temperature match.

Include this fixture’s 3.5 VA load when sizing the landscape transformer and circuit. The 9–15V AC operating range does not replace a voltage-drop calculation: select conductor size for the total circuit load and run length, then verify voltage at the fixture under load. Follow local codes and Kichler’s instructions for wiring, mounting and final aiming.

Manufacturer resources

Kichler 16151AZT27 product details · Kichler 16151 specification and photometric sheet · Manufacturer installation instructions · Kichler warranty information

Sku: 16151AZT27
Vendor: Kichler
$140.02
