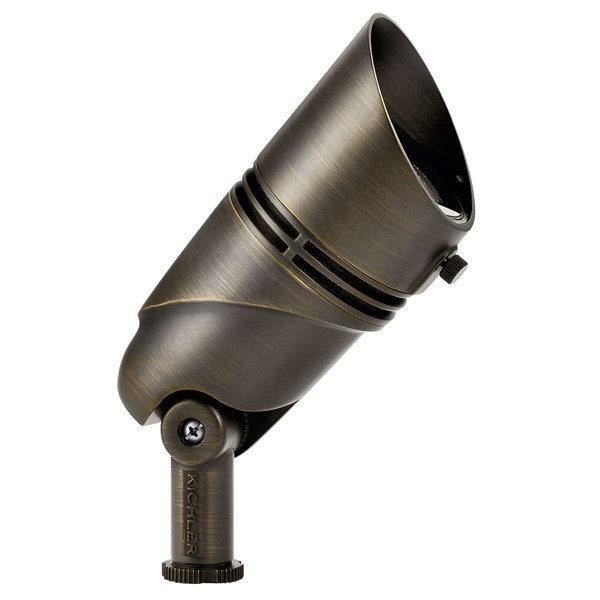

Kichler 16160CBR27 15° 2700K VLO LED spotlight

Previous Product | Next Product

Product Description

The Kichler 16160CBR27 is a 12V integrated LED VLO high-lumen spotlight in Centennial Brass. Its 15-degree optic provides a concentrated narrow spot for tighter aiming on tall or narrow focal points, while the 2700K warm-white output keeps the light specification clear at selection time.

Specifications

16160CBR27 specifications
Model 16160CBR27
Product type 12V VLO high-lumen LED spotlight
Finish Centennial Brass
Primary material Brass
Light source Integrated LED
Color temperature 2700K
Color rendering index 80 CRI
Beam angle 15°
Selectable light output 1,000 or 1,200 lumens
Power at 12V AC 14W or 18W, according to selected output
Input voltage 12V; 9–15V AC operating range
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts and magnetic key

Beam selection and installation planning

Choose the 15° spotlight when the layout calls for a concentrated narrow spot for tighter aiming on tall or narrow focal points. Use Kichler’s photometric tables to compare beam width and illumination at the planned mounting distance before finalizing spacing. The supplied magnetic key switches between the 1,000- and 1,200-lumen settings without opening the fixture; this is a VLO output control, not conventional dimming.

Keep the transformer load and voltage drop within the manufacturer’s limits. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16160CBR27 product details · Kichler VLO high-lumen specification and photometric guide · Manufacturer instruction sheet
