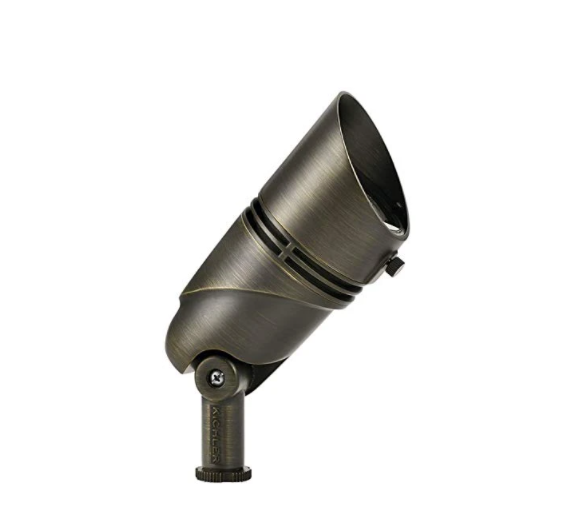

Kichler 16019CBR30 35° 3000K VLO LED floodlight

Previous Product | Next Product

Product Description

The Kichler 16019CBR30 is a large 12V integrated LED VLO floodlight in Centennial Brass. Its 35-degree optic provides a medium flood for balanced coverage on trees, façades and architectural details. The 3000K clean warm-white color temperature and three field-selectable output levels make the exact light specification clear before layout and aiming.

Specifications

16019CBR30 specifications
Model 16019CBR30
Product type Large 12V VLO LED floodlight
Finish Centennial Brass
Primary material Brass
Light source Integrated LED
Color temperature 3000K
Color rendering index 80 CRI
Beam angle 35°
Selectable light output 400, 600 or 835 lumens
Maximum nominal wattage 12W
Input voltage 12V; 9–15V AC operating range
Dimensions 4.50 in. H × 6.00 in. L × 2.75 in. W
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts, locknut and magnetic key

Beam selection and installation planning

Choose the 35° floodlight when the plan calls for a medium flood for balanced coverage on trees, façades and architectural details. Use Kichler’s photometric tables to compare beam width and illumination at the intended mounting distance before setting fixture spacing. The magnetic key changes the 400-, 600- and 835-lumen settings without opening the sealed fixture; it is a VLO output control, not conventional dimming.

Include this fixture’s maximum load when sizing the landscape transformer, and verify voltage at the fixture after accounting for wire length and conductor size. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16019CBR30 product details · Kichler 16019 specification and photometric guide · Manufacturer instruction sheet
