Kichler 16018CBR27 15° 2700K VLO LED spotlight

Previous Product | Next Product

Product Description

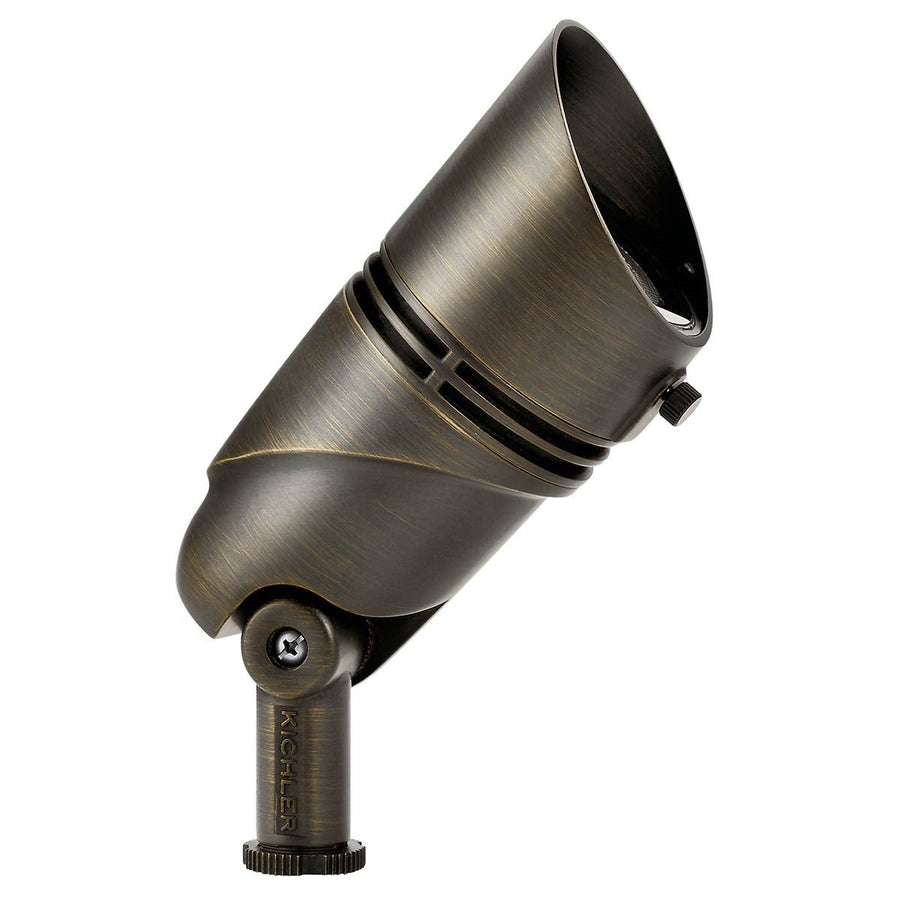

The Kichler 16018CBR27 is a large 12V integrated LED VLO spotlight in Centennial Brass. Its 15-degree optic provides a narrow, concentrated beam for precise aiming on tall trees, columns or other defined features. The 2700K warm-white color temperature and three field-selectable output levels make the exact light specification clear before layout and aiming.

Specifications

16018CBR27 specifications
Model 16018CBR27
Product type Large 12V VLO LED spotlight
Finish Centennial Brass
Primary material Brass
Light source Integrated LED
Color temperature 2700K
Color rendering index 80 CRI
Beam angle 15°
Selectable light output 400, 600 or 835 lumens
Maximum nominal wattage 12W
Input voltage 12V; 9–15V AC operating range
Dimensions 4.50 in. H × 6.00 in. L × 2.75 in. W
Location rating Wet location; IP66
Mounting Ground stake
Included installation items 8-inch slotted stake, two gel-filled wire nuts, locknut and magnetic key

Beam selection and installation planning

Choose the 15° spotlight when the plan calls for a narrow, concentrated beam for precise aiming on tall trees, columns or other defined features. Use Kichler’s photometric tables to compare beam width and illumination at the intended mounting distance before setting fixture spacing. The magnetic key changes the 400-, 600- and 835-lumen settings without opening the sealed fixture; it is a VLO output control, not conventional dimming.

Include this fixture’s maximum load when sizing the landscape transformer, and verify voltage at the fixture after accounting for wire length and conductor size. Follow local codes and Kichler’s instructions for wiring, aiming and final VLO adjustment.

Manufacturer resources

Kichler 16018CBR27 product details · Kichler 16018 specification and photometric guide · Manufacturer instruction sheet
