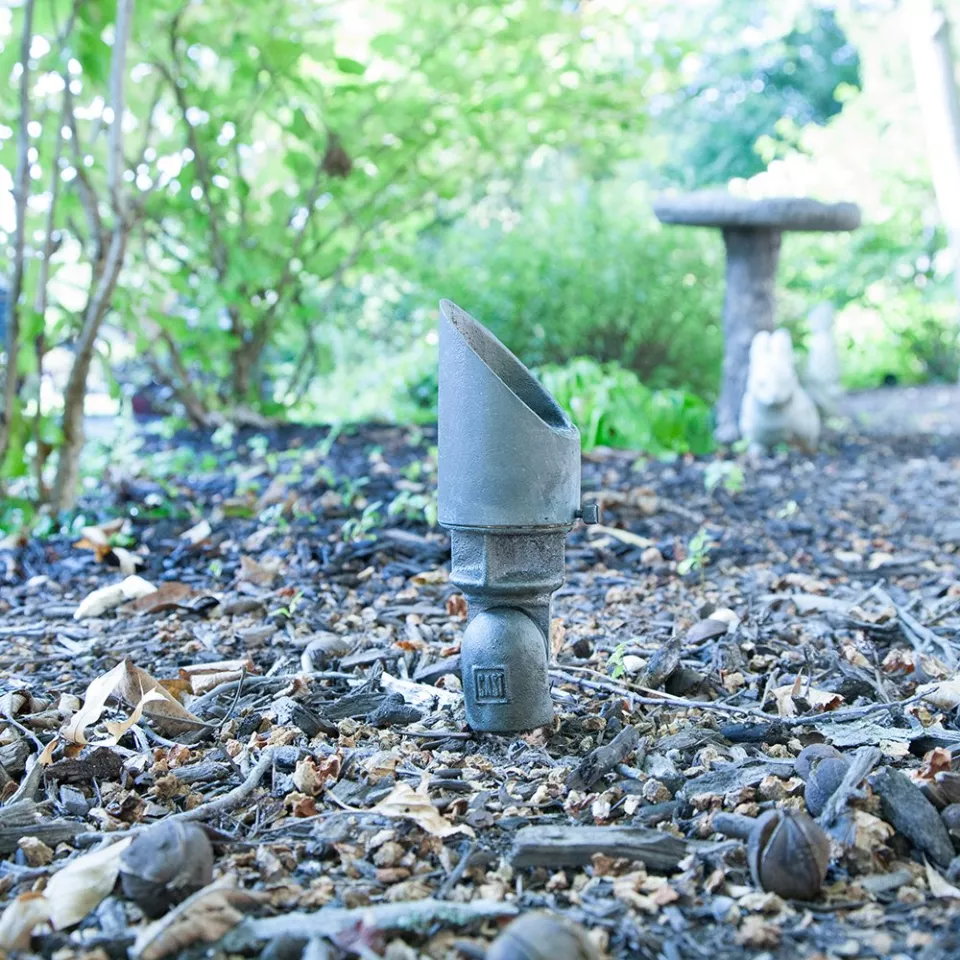

CAST CBLED141 Classic Integrated LED Bronze Bullet Spotlight

The CAST CBLED141 Classic LED Bullet/Spot combines solid sand-cast bronze construction with a serviceable integrated LED module, dual output settings and interchangeable optics for professional low-voltage landscape uplighting. It is designed for illuminating plant material, structures and architectural features while providing greater beam and output flexibility than a fixed-output spotlight.

Key Features

• Solid sand-cast bronze body, shroud and stake
• Replaceable MR16-size LED module
• High/low output switch
• 41° optic included; optional 21° and 12° optics sold separately
• 10-24V AC/DC input
• 2720K warm white
• CRI 80
• 60,500-hour L70 rated life
• 269 lumens on low; 328 lumens on high
• 5.86W low / 9.25W high
• Dimmable with standard low-voltage phase dimmers
• 25 ft #18/2 tin-coated lead wire
• Body 2.5 in. wide × 9 in. tall fully extended
• 8.5 in. stake

Application note: Designed for uplighting. CAST specifically states that this fixture cannot be used as a downlight.

Replacement Parts & Service Items

• CAST XCBPSHROUD3A Replacement Shroud Assembly — replacement shroud, lens and lock nut assembly for the CBLED141.
• CAST CBLMOD LED MR-16 Replacement Module — factory replacement LED module offered in 41°, 21° and 12° beam assemblies.

Model: CBLED141
